A good PCB layout for the LMP91300YZRT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the gain and offset of the LMP91300YZRT, you can use the internal gain and offset calibration registers. You can also use external resistors to adjust the gain and offset. It's recommended to consult the datasheet and application notes for specific guidance on gain and offset calibration.
The recommended power-up sequence for the LMP91300YZRT is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
To handle the high impedance of the LMP91300YZRT's input pins, it's recommended to use a buffer amplifier or an op-amp with a high input impedance to drive the input signal. Additionally, using a low-noise, low-impedance signal source and minimizing the length of the input traces can help to reduce noise and ensure accurate measurements.
The maximum operating temperature range for the LMP91300YZRT is -40°C to 125°C. Temperature can affect the device's performance, particularly in terms of offset voltage and gain. It's recommended to consult the datasheet and application notes for specific guidance on temperature-related performance characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP91300YZRT Overview

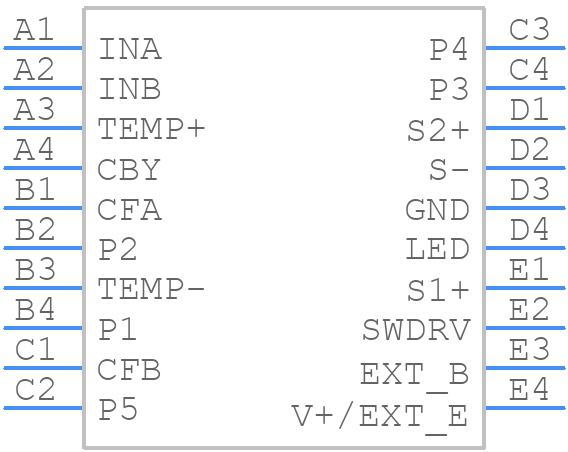

Use the download button to access the LMP91300YZRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP91,
or try a keyword search, such as Other Signal Circuits
