SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
5.25 V
Supply Voltage-Min (Vsup):
4.75 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LMP92066PWPR Frequently Asked Questions (FAQs)
A good PCB layout for the LMP92066PWPR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The gain and offset calibration for the LMP92066PWPR can be optimized by following the calibration procedure outlined in the datasheet. Additionally, it's recommended to use a calibration routine that takes into account the specific requirements of your application, such as the input signal range and the desired output range.
The LMP92066PWPR can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure optimal performance and to prevent damage to the device.
To ensure EMC with the LMP92066PWPR, it's recommended to follow proper PCB design and layout practices, such as using a solid ground plane, keeping the analog and digital circuits separate, and using shielding and filtering as needed.
The recommended power-up sequence for the LMP92066PWPR is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-up issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP92066PWPR Overview

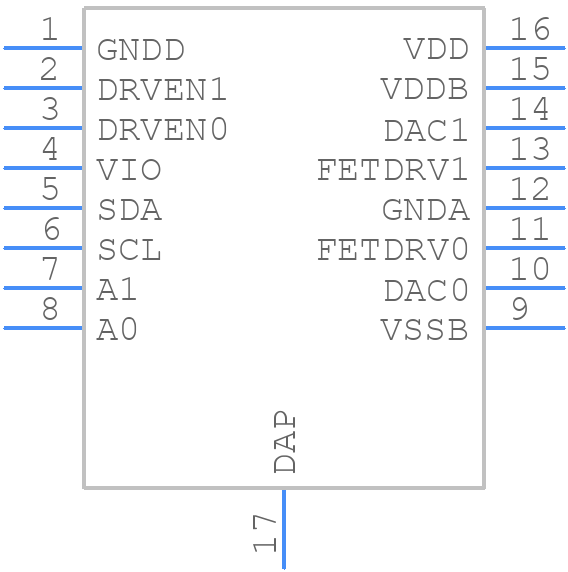

Use the download button to access the LMP92066PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP92,
or try a keyword search, such as Other Signal Circuits
