Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
The gain setting depends on the specific application requirements. The LMP93601NHZT has a programmable gain amplifier, and the gain setting should be chosen based on the input signal amplitude, desired output signal amplitude, and noise tolerance. TI provides a gain calculation tool to help with this process.
The maximum input signal amplitude is not explicitly stated in the datasheet, but it's typically limited by the device's linear range and noise floor. As a general rule, the input signal amplitude should be limited to -1.5 dB to 1.5 dB of the full-scale range to ensure optimal performance.
The LMP93601NHZT has a built-in anti-aliasing filter, but additional filtering may be necessary depending on the specific application. TI recommends using a combination of passive and active filters, such as RC filters and notch filters, to remove noise and interference.
The power consumption of the LMP93601NHZT depends on the operating mode, gain setting, and input signal amplitude. To optimize power consumption, TI recommends using the device's power-down mode, reducing the gain setting, and using a low-power supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMP93601NHZT Overview

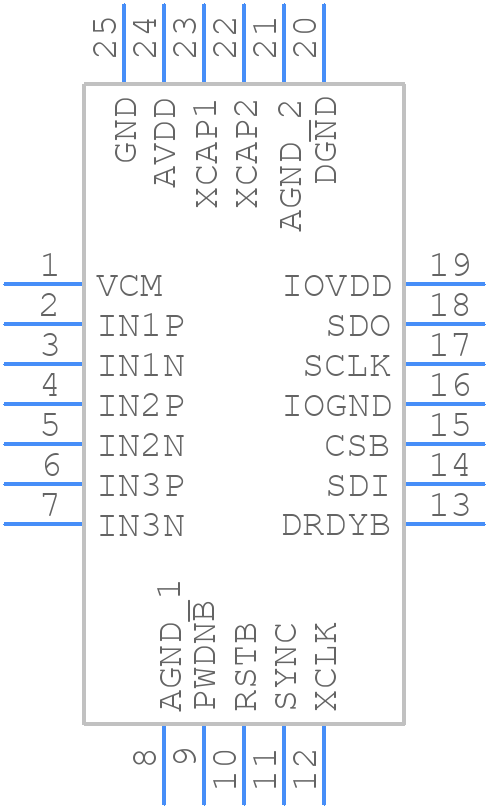

Use the download button to access the LMP93601NHZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMP93,
or try a keyword search, such as Other Signal Circuits
