Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct to the heat sink or chassis.
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms, such as thermal shutdown or warning signals.
Operating the device at the maximum TJ of 150°C can reduce its lifespan and reliability. It's recommended to keep the TJ below 125°C for optimal performance and reliability. Exceeding the maximum TJ can lead to premature failure or degradation of the device.
The LMQ66410MC3RXBRQ1 requires a specific power sequencing and startup procedure to ensure proper operation. It's essential to follow the recommended power-up and power-down sequences, and to provide a stable input voltage and clock signal during startup.
The LMQ66410MC3RXBRQ1 is a high-frequency device, and proper EMI and RFI mitigation techniques should be employed to minimize electromagnetic interference and radio-frequency interference. This includes using shielding, filtering, and proper PCB layout and design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMQ66410MC3RXBRQ1 Overview

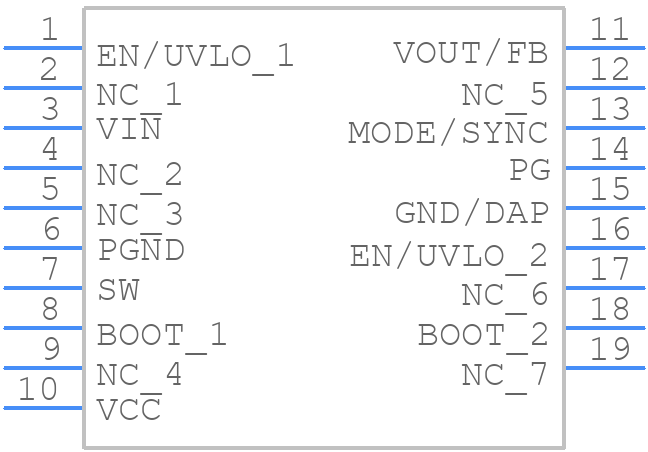

Use the download button to access the LMQ66410MC3RXBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMQ66,
or try a keyword search, such as Switching Regulator or Controllers
