LMR10510YSDE/NOPB - Texas Instruments

Description: Texas Instruments LMR10510YSDE/NOPB, Buck Converter, 1A, 5.5 V, Step Down, 3.75 MHz, 6-Pin, WSON

Download LMR10510YSDE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

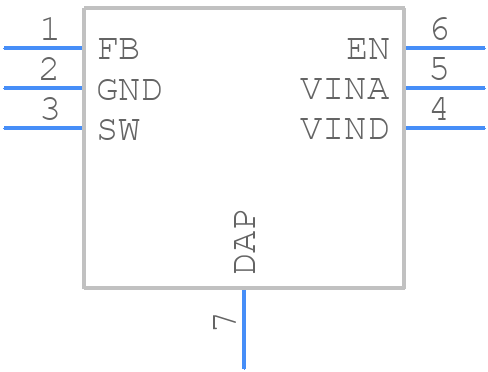

LMR10510YSDE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR10510YSDE/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGG
click to zoom
3D Models
LMR10510YSDE/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGG
click to zoom

LMR10510YSDE/NOPB Details

  • Manufacturer Part Number:

    LMR10510YSDE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATE IN ADJUSTABLE MODE FROM 0.6 TO 4.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    4.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LMR10510YSDE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMR10510YSDE/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR of 0.1 ohms is recommended for the output capacitor.
  • The LMR10510YSDE/NOPB can operate in ambient temperatures up to 85°C. However, the device's junction temperature should not exceed 125°C to ensure reliable operation.
  • Yes, the LMR10510YSDE/NOPB has built-in EMI filtering and is designed to meet the CISPR 22 Class B EMI standard. However, additional EMI filtering may be required depending on the specific application and regulatory requirements.
  • The recommended input capacitor value for the LMR10510YSDE/NOPB is 1-10uF, with a voltage rating of at least 6.3V. A low-ESR capacitor is recommended to minimize voltage ripple and ensure stable operation.
