LMR14020SDDAR - Texas Instruments

Description: SIMPLE SWITCHER, 4V to 40V, 2A 2.2MHz Step-Down Regulator with Low IQ

Download LMR14020SDDAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

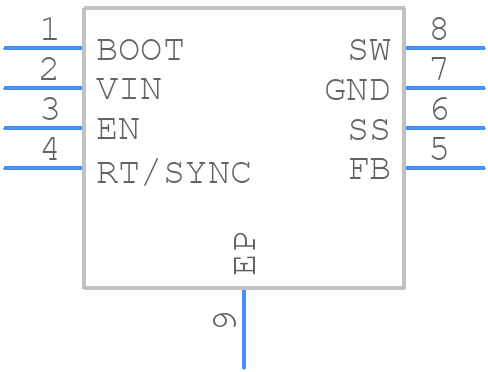

LMR14020SDDAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR14020SDDAR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (R-PDSO-G8)_11
click to zoom
3D Models
LMR14020SDDAR - Texas Instruments - 3D model - Small Outline Packages - DDA (R-PDSO-G8)_11
click to zoom

LMR14020SDDAR Details

  • Manufacturer Part Number:

    LMR14020SDDAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    36 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LMR14020SDDAR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and use a thermal pad on the bottom of the device.
  • Monitor the input voltage, output voltage, and output current to ensure they are within the recommended operating conditions specified in the datasheet. Also, ensure the device is operated within the recommended temperature range.
  • Handle the device by the body or pins, avoid touching the die, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • Yes, the LMR14020SDDAR is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability standards.
  • Use a thermal imaging camera to identify hotspots, and check the input voltage, output voltage, and output current using a multimeter or oscilloscope. Also, verify the PCB layout and thermal design to ensure they meet the recommended guidelines.
