A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, placing vias under the device can help to dissipate heat more efficiently.
To ensure the device operates within the recommended operating conditions, it's essential to monitor the input voltage, output voltage, and output current. The input voltage should be within the recommended range of 4.5V to 42V, and the output voltage should be within the recommended range of 0.8V to 40V. The output current should not exceed the recommended maximum current rating of 2A.
When handling the device, it's essential to take precautions to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat, and handle the device by the body or pins, rather than the leads. Avoid touching the device's pins or leads, and store the device in an anti-static bag or container when not in use.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and that the output voltage and current are within the expected ranges. Check for any signs of overheating, and ensure that the device is properly soldered to the PCB. If the issue persists, consult the datasheet and application notes for further guidance.
The device has a maximum junction temperature rating of 150°C. To ensure reliable operation, it's essential to keep the junction temperature below this rating. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Avoid operating the device in high-temperature environments, and monitor the device's temperature using a thermocouple or thermal sensor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

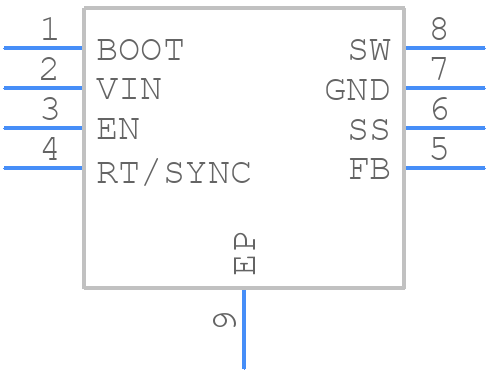

LMR14020SSQDDARQ1 Overview
Use the download button to access the LMR14020SSQDDARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR14,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
