A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane can help to dissipate heat efficiently.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
Handle the device by the body or the pins, avoiding touching the die or any internal components. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Store the device in an anti-static bag or wrap it in anti-static material when not in use.
To troubleshoot issues with the device, check the input voltage, output voltage, and output current. Verify that the device is operated within the recommended operating conditions. Check for any signs of physical damage, such as cracks or corrosion. Use a thermal imaging camera to detect any hotspots on the device or PCB.
To minimize EMI and RFI, use a shielded enclosure, and ensure good grounding and decoupling of the device. Use a common-mode choke or ferrite bead to filter out high-frequency noise. Place the device away from other noise-sensitive components on the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR14030QDPRRQ1 Overview

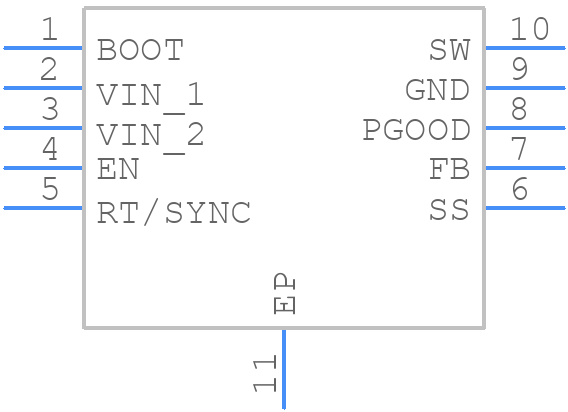

Use the download button to access the LMR14030QDPRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR14,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
