LMR14050SDDAR - Texas Instruments

Description: 40V, 5A SIMPLE SWITCHER, 2.2MHz Step-Down Regulator with 40μA IQ

Download LMR14050SDDAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

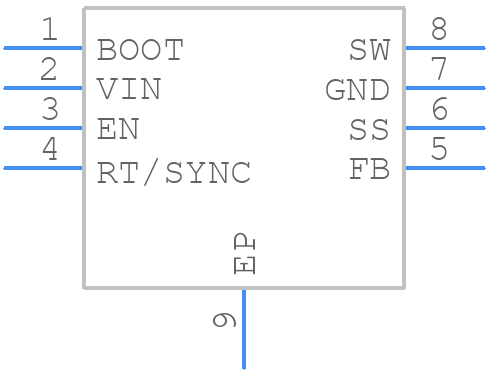

Symbol
LMR14050SDDAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR14050SDDAR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom
3D Models
LMR14050SDDAR - Texas Instruments - 3D model - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom

LMR14050SDDAR Details

  • Manufacturer Part Number:

    LMR14050SDDAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    36 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LMR14050SDDAR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and use a thermal pad under the device.
  • Monitor the input voltage, output voltage, and output current to ensure they are within the recommended operating conditions specified in the datasheet. Also, ensure the device is operated within the recommended temperature range.
  • Handle the device by the body or the pins, avoiding touching the dielectrically isolated pins. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage. Store the device in an anti-static bag or wrap it in anti-static material.
  • Yes, the LMR14050SDDAR is qualified for automotive and industrial applications. However, it's essential to follow the recommended operating conditions and ensure the device is properly derated for high-temperature operation.
  • Check the input voltage, output voltage, and output current to ensure they are within the recommended operating conditions. Verify the PCB layout and thermal design are correct. Use a thermal camera or thermometer to check the device temperature. Consult the datasheet and application notes for troubleshooting guidelines.
