LMR1802G-LBTR - ROHM Semiconductor

Description: Operational Amplifiers - Op Amps 5uV Offset Voltage SSOP5 CMOS

Download LMR1802G-LBTR Model
Schematic

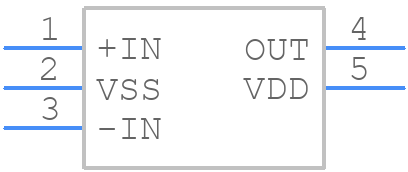

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LMR1802G-LBTR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5
click to zoom
3D Models
LMR1802G-LBTR - ROHM Semiconductor  - 3D model - SOT23 (5-Pin) - SSOP5
click to zoom

LMR1802G-LBTR Details

  • Manufacturer Part Number:

    LMR1802G-LBTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.003 µA

  • Bias Current-Max (IIB) @25C:

    0.00022 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    105 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR, EMBOSSED

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.25 mm

  • Slew Rate-Nom:

    1.1 V/us

  • Supply Current-Max:

    1.65 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    1.6 mm

LMR1802G-LBTR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure the stability of the output voltage, it's recommended to use a capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. Additionally, the output capacitor should be placed as close to the output pin as possible to minimize the loop inductance.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
  • While the LMR1802G-LBTR is rated for operation up to 125°C, it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation and to prevent thermal runaway.
  • The power dissipation of the LMR1802G-LBTR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
