Texas Instruments provides a recommended PCB layout for the LMR23625CFPQDRRRQ1 in the datasheet, but it's also recommended to follow general guidelines for thermal design, such as using a solid ground plane, minimizing thermal resistance, and using thermal vias to dissipate heat.
To ensure proper biasing, follow the recommended operating conditions and biasing circuits provided in the datasheet. Additionally, consider using a voltage regulator or a voltage reference to maintain a stable input voltage, and ensure that the input voltage is within the recommended range.
The maximum allowed power dissipation for the LMR23625CFPQDRRRQ1 is dependent on the operating conditions and the thermal design of the PCB. Refer to the datasheet for the recommended power dissipation and thermal design guidelines to ensure safe operation.
The LMR23625CFPQDRRRQ1 is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. Consult the datasheet for temperature-related specifications and consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
To troubleshoot issues with the LMR23625CFPQDRRRQ1, follow a systematic approach, such as checking the power supply, input voltage, and output load. Consult the datasheet for troubleshooting guidelines and consider using simulation tools or Spice models to analyze the circuit. Additionally, consult with Texas Instruments' technical support or application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR23625CFPQDRRRQ1 Overview

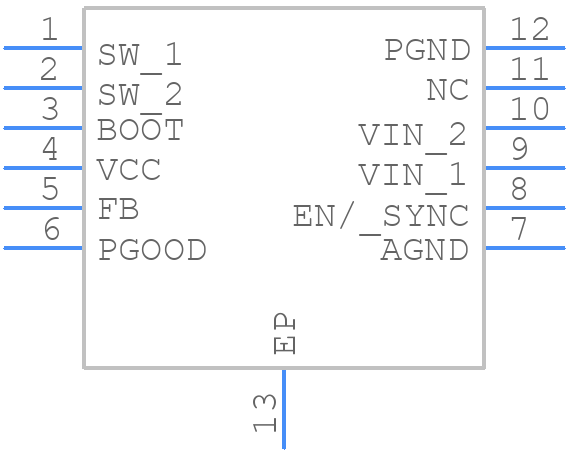

Use the download button to access the LMR23625CFPQDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR23,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
