LMR23625CQDDAQ1 - Texas Instruments

Description: Switching Voltage Regulators Automotive Qualified SIMPLE SWITCHER , 4V to 36V, 2.5A Synchronous Step-Down Converter 8-SO PowerPAD -40 to 125

Download LMR23625CQDDAQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

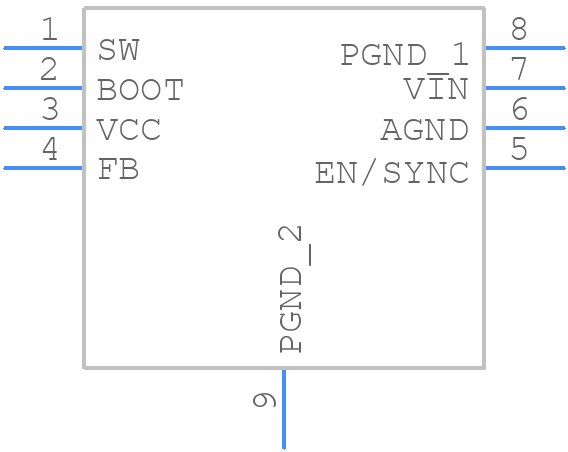

LMR23625CQDDAQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR23625CQDDAQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom
3D Models
LMR23625CQDDAQ1 - Texas Instruments - 3D model - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom

LMR23625CQDDAQ1 Details

  • Manufacturer Part Number:

    LMR23625CQDDAQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-12-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PFM TECHNIQUE ALSO USED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    34 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    1 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LMR23625CQDDAQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
  • To ensure the stability of the output voltage in a noisy environment, it is recommended to use a low-ESR output capacitor, add a noise filter capacitor at the input, and use a shielded cable to connect the input and output. Additionally, decoupling capacitors can be added at the input and output to filter out high-frequency noise.
  • The maximum input voltage that can be applied to the LMR23625CQDDAQ1 without damaging it is 42V. Exceeding this voltage can cause permanent damage to the device.
  • The selection of the output capacitor depends on the output voltage, output current, and the desired level of output voltage ripple. A general rule of thumb is to use a capacitor with a value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. The capacitor should also have a low ESR to minimize output voltage ripple.
  • The maximum ambient temperature at which the LMR23625CQDDAQ1 can operate safely is 125°C. Operating the device above this temperature can cause permanent damage or affect its reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMR23625CQDDAQ1 Overview

Use the download button to access the LMR23625CQDDAQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR23, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
