A good PCB layout for the LMR23630ADDAR should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet.
To ensure stability, it's essential to follow the recommended output capacitor selection and ESR values, as well as to maintain a minimum output capacitance of 10uF. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillations.
While the datasheet specifies a maximum input voltage of 42V, it's essential to consider the maximum voltage rating of the specific package and the application's requirements. In general, it's recommended to derate the input voltage by 10-15% to ensure reliable operation.
Implementing overcurrent protection (OCP) and overtemperature protection (OTP) is crucial. The LMR23630ADDAR has a built-in OCP, but it's recommended to add external protection using a fuse or a PTC thermistor. For OTP, a thermal shutdown circuit can be implemented to prevent damage from overheating.
The input capacitor should be selected based on the input voltage, output current, and ripple requirements. A general guideline is to use a capacitor with a minimum capacitance of 1uF and a voltage rating of at least 1.5 times the maximum input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR23630ADDAR Overview

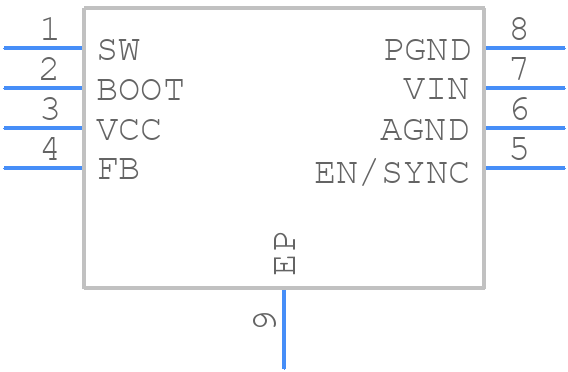

Use the download button to access the LMR23630ADDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR23,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
