Part Image

LMR23630FDRRT - Texas Instruments

Description: LMR23630 SIMPLE SWITCHER® 36-V, 3-A Synchronous Step-Down Converter

Download LMR23630FDRRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

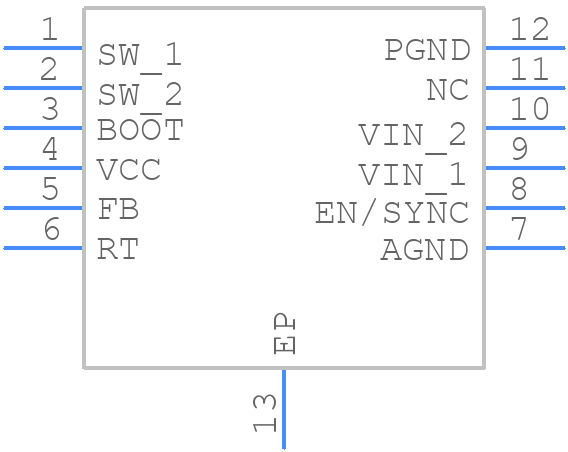

LMR23630FDRRT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR23630FDRRT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRR0012D_1
click to zoom
3D Models
LMR23630FDRRT - Texas Instruments - 3D model - Small Outline No-lead - DRR0012D_1
click to zoom

LMR23630FDRRT Details

  • Manufacturer Part Number:

    LMR23630FDRRT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-05-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO USED

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    30 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LMR23630FDRRT Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMR23630FDRRT should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and placed close to the device. TI also provides a stability calculator tool to help with component selection.
  • The LMR23630FDRRT is rated for operation up to 125°C ambient temperature. However, derating may be necessary for high-power applications or high-temperature environments. Consult the datasheet and thermal design guidelines for more information.
  • Yes, the LMR23630FDRRT is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using automotive-grade processes. However, additional testing and validation may be required for specific applications.
  • The LMR23630FDRRT has built-in overcurrent protection, but additional protection may be necessary for high-voltage or high-power applications. Consider adding external overvoltage protection devices, such as TVS diodes or zener diodes, and ensure that the PCB design can handle fault conditions.
