LMR24210TL/NOPB - Texas Instruments

Description: SIMPLE SWITCHER® 42Vin, 1.0A Step-Down Voltage Regulator in micro SMD

Download LMR24210TL/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

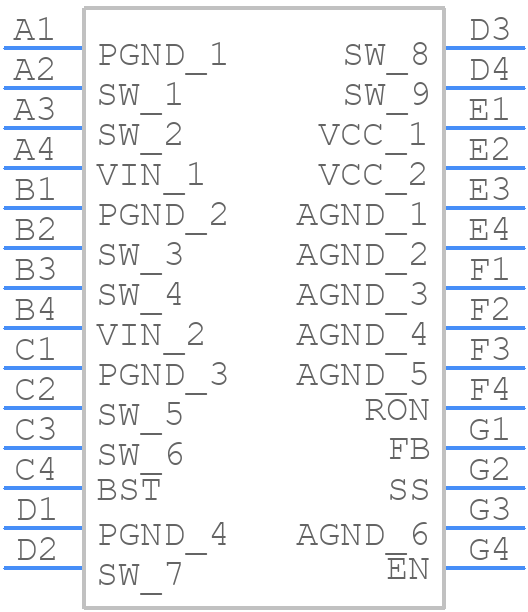

Symbol
LMR24210TL/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR24210TL/NOPB - Texas Instruments PCB footprint - BGA - BGA - YPA0028
click to zoom
3D Models
LMR24210TL/NOPB - Texas Instruments - 3D model - BGA - YPA0028
click to zoom

LMR24210TL/NOPB Details

  • Manufacturer Part Number:

    LMR24210TL/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT ON TIME

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PBGA-B28

  • JESD-609 Code:

    e1

  • Length:

    3.643 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA28,4X7,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.675 mm

  • Supply Current-Max (Isup):

    60 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.449 mm

LMR24210TL/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMR24210 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions.
  • The maximum ambient temperature range for the LMR24210 is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LMR24210 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is qualified to automotive and industrial standards. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.
  • To troubleshoot issues with the LMR24210, start by verifying that the device is operated within its recommended specifications. Check the input and output voltage levels, and ensure that the device is properly decoupled. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMR24210TL/NOPB Overview

Use the download button to access the LMR24210TL/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR24, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
