Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The datasheet provides a list of recommended inductors, but you can also use the following guidelines: choose an inductor with a saturation current rating above the peak current of the regulator, and ensure the inductor's DC resistance is low to minimize power loss. You can also use online inductor selection tools or consult with the inductor manufacturer.
The datasheet specifies an operating junction temperature range of -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. As a general rule, the ambient temperature should be at least 20°C below the maximum junction temperature to ensure reliable operation.
Yes, the LMR24220TLX/NOPB is qualified for automotive and high-reliability applications, but you should ensure that the device meets the specific requirements of your application, such as AEC-Q100 qualification, and follow the recommended design and testing guidelines.
Start by checking the PCB layout and component selection, ensuring that they meet the recommended guidelines. Then, use oscilloscope measurements to identify the source of the issue, such as ringing or voltage spikes. Consult the datasheet and application notes for troubleshooting guidelines, and consider seeking support from Texas Instruments or a qualified engineer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR24220TLX/NOPB Overview

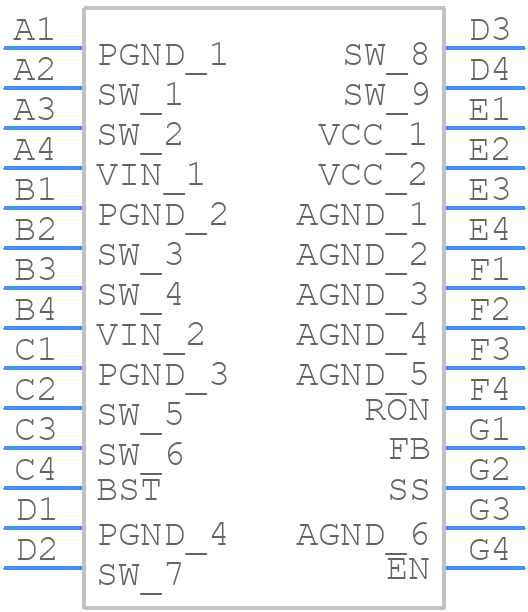

Use the download button to access the LMR24220TLX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR24,
or try a keyword search, such as Switching Regulator or Controllers
