Description:Switching Voltage Regulators SIMPLE SWITCHER® 3.8-V to 36-V, 1-A synchronous step-down converter in SOIC-8 package 8-SO PowerPAD -40 to 125
For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, ensure that the thermal vias are connected to the ground plane to reduce thermal resistance.
To ensure stability in high-current applications, it is essential to follow the recommended layout guidelines, use a sufficient number of vias to connect the thermal pad to the ground plane, and add a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor between the VIN and GND pins.
The LMR33610ADDAR is rated for operation up to 125°C ambient temperature. However, for reliable operation, it is recommended to keep the ambient temperature below 105°C to ensure a sufficient margin for thermal derating.
The LMR33610ADDAR is rated for a maximum input voltage of 36V. While it can tolerate some voltage transients, it is not recommended for high-voltage applications exceeding 42V. For high-voltage applications, consider using a voltage regulator with a higher voltage rating.
To minimize EMI, ensure that the PCB layout follows good electromagnetic compatibility (EMC) practices, such as keeping the switching node (SW) away from sensitive analog circuits, using a shielded inductor, and adding a common-mode choke if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR33610ADDAR Overview

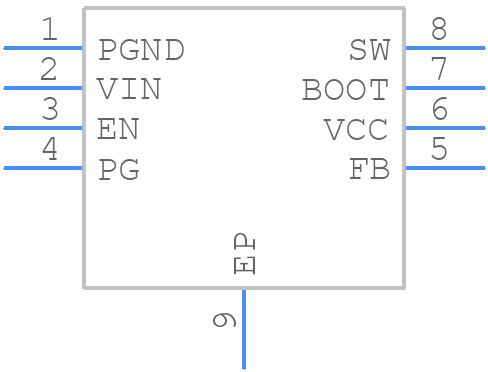

Use the download button to access the LMR33610ADDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR33,
or try a keyword search, such as Switching Regulator or Controllers
