A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure stability and prevent oscillations, it's essential to follow the recommended layout and component selection guidelines, including the use of a low-ESR output capacitor, a suitable inductor, and a stable input voltage. Additionally, the device's compensation pin should be properly connected to the output capacitor.
Although the datasheet specifies a maximum input voltage of 42V, it's recommended to limit the input voltage to 36V to ensure reliable operation and prevent damage to the device.
While the LMR33630BDDAR is rated for operation up to 125°C, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked and that the PCB is designed to handle high temperatures.
To troubleshoot issues with the LMR33630BDDAR, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and current, and check for signs of oscillation or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR33630BDDAR Overview

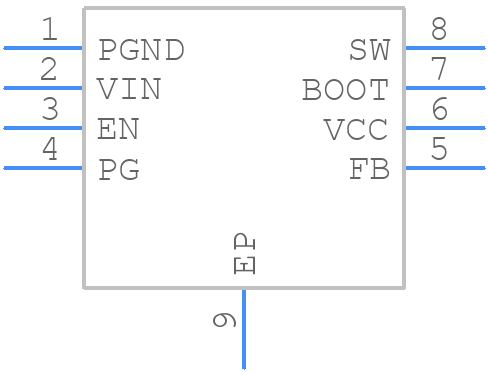

Use the download button to access the LMR33630BDDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR33,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
