A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, placing vias under the device can help to dissipate heat more efficiently.
To ensure stability and prevent oscillations in the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the output pin. Additionally, using a low-ESR capacitor and minimizing the loop area of the output traces can help to reduce oscillations.
The recommended input capacitor value is 10uF to 22uF, and a low-ESR ceramic capacitor such as X5R or X7R is recommended. The input capacitor should be placed close to the input pin and should have a voltage rating that is at least 1.5 times the maximum input voltage.
The output voltage ripple and noise can be calculated using the following formula: ΔVout = (Iout * Rload) / (fsw * Cout), where ΔVout is the output voltage ripple, Iout is the output current, Rload is the load resistance, fsw is the switching frequency, and Cout is the output capacitance. Additionally, the output voltage noise can be estimated using the datasheet specifications for output voltage noise density and the output capacitance.
For high-power applications, a thermal management strategy that involves using a heat sink, thermal interface material, and a fan or other cooling system is recommended. The heat sink should be designed to have a low thermal resistance and should be attached to the device using a thermal interface material. Additionally, the system should be designed to ensure good airflow and heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR33630CDDA Overview

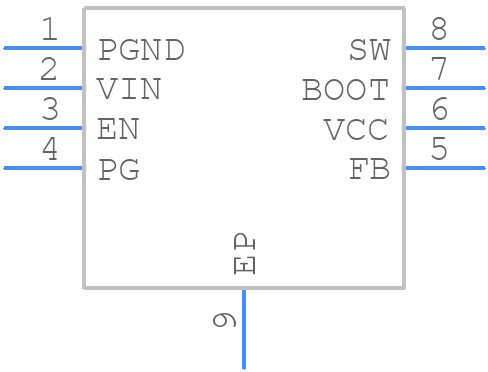

Use the download button to access the LMR33630CDDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR33,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
