A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure reliable start-up and shutdown, it is recommended to add a soft-start circuit to limit the inrush current during start-up, and to use a power-on reset (POR) circuit to ensure a clean reset during power-up and power-down sequences.
When selecting the output capacitor, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. A higher capacitance value can reduce output voltage ripple, but may increase the risk of oscillation. A low ESR can reduce power loss, but may increase the cost.
To minimize EMI, use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and use a common-mode choke to reduce common-mode noise. Additionally, use a layout that minimizes loop areas and keeps the power traces away from sensitive signals.
Increasing the switching frequency can reduce output voltage ripple, but may decrease efficiency due to increased switching losses. Conversely, reducing the switching frequency can improve efficiency, but may increase output voltage ripple. A good design balances these trade-offs based on the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR36506RFRPER Overview

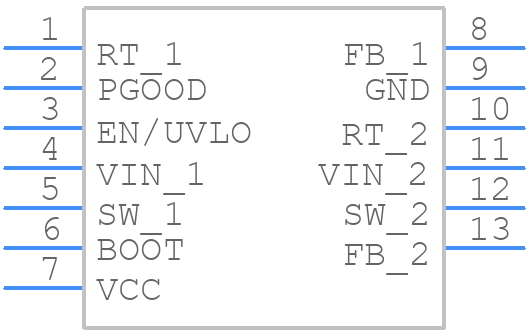

Use the download button to access the LMR36506RFRPER schematic symbol, PCB footprint, and 3D model.
