LMR36506RRPER - Texas Instruments

Description: Switching Voltage Regulators 3-V to 65-V, 0.6-A ultra-small synchronous buck converter with 4 A IQ 9-VQFN-HR -40 to 150

Download LMR36506RRPER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

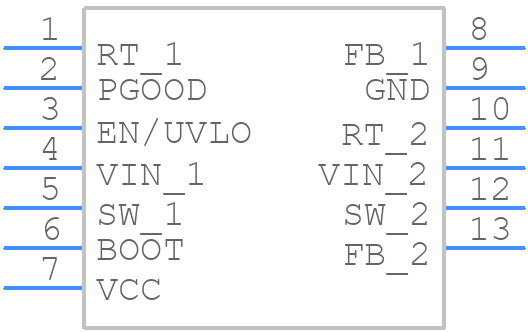

LMR36506RRPER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR36506RRPER - Texas Instruments PCB footprint - Other - Other - RPE0009A_2022
click to zoom
3D Models
LMR36506RRPER - Texas Instruments - 3D model - Other - RPE0009A_2022
click to zoom

LMR36506RRPER Details

  • Manufacturer Part Number:

    LMR36506RRPER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PBCC-N9

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    60 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VBCC

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LMR36506RRPER Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMR36506RRPER should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum ESR (Equivalent Series Resistance) of 10mΩ for the output capacitor is recommended. TI also provides a stability analysis tool to help with component selection.
  • Although the datasheet specifies a maximum input voltage of 36V, it's recommended to derate the input voltage to 30V to ensure reliable operation and prevent damage to the device.
  • The LMR36506RRPER has a built-in OCP and SCP feature. To implement it, connect a sense resistor (Rs) between the output and GND, and set the OCP threshold voltage (Vocp) using an external resistor divider. TI provides a detailed application note on implementing OCP and SCP.
  • A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 10uF to 22uF is recommended for the input capacitor. This helps to filter out input noise and ensure stable operation.
