Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to the bottom layer to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the top layer.
To ensure reliable operation at high temperatures, it is essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material, and airflow. Additionally, derating the output current and voltage can help reduce thermal stress.
The maximum allowed voltage on the enable pin is 6V, which is the absolute maximum rating. However, it is recommended to keep the enable voltage between 2.5V and 5.5V for reliable operation.
Yes, the LMR38010FSDDAR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
Output voltage instability or oscillations can be caused by inadequate decoupling, poor PCB layout, or insufficient output capacitance. Check the PCB layout, decoupling capacitors, and output capacitance to ensure they meet the recommended specifications. Additionally, verify that the input voltage is within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR38010FSDDAR Overview

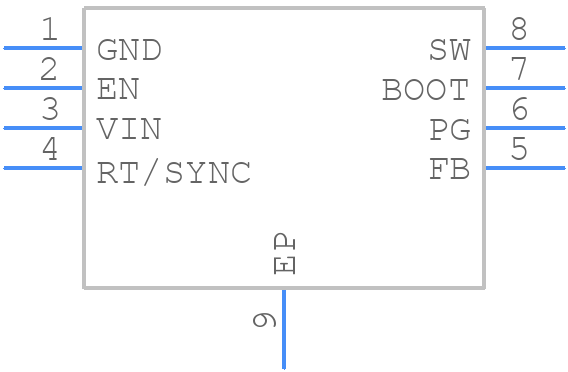

Use the download button to access the LMR38010FSDDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR38,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
