Texas Instruments provides a recommended PCB layout for the LMR38010FSQDDARQ1 in the datasheet, but it's also recommended to follow general guidelines for thermal design, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and provide adequate heat sinking. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
Using a different input capacitor value than recommended may affect the stability and performance of the regulator. A larger input capacitor can improve noise rejection, but may also increase the startup time and reduce the regulator's ability to respond to transient changes. A smaller input capacitor may reduce the startup time, but can also increase noise sensitivity. It's essential to evaluate the impact of different input capacitor values on the specific application.
The LMR38010FSQDDARQ1 has a specified output voltage tolerance of ±2%. To handle output voltage tolerance and accuracy requirements, consider using a voltage reference or a more accurate voltage regulator if required. Additionally, ensure that the output voltage is properly filtered and decoupled to minimize noise and ripple.
The LMR38010FSQDDARQ1 is designed to meet EMI and EMC requirements, but it's still essential to follow good design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering as necessary. Additionally, consider using a common-mode choke or ferrite bead to reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR38010FSQDDARQ1 Overview

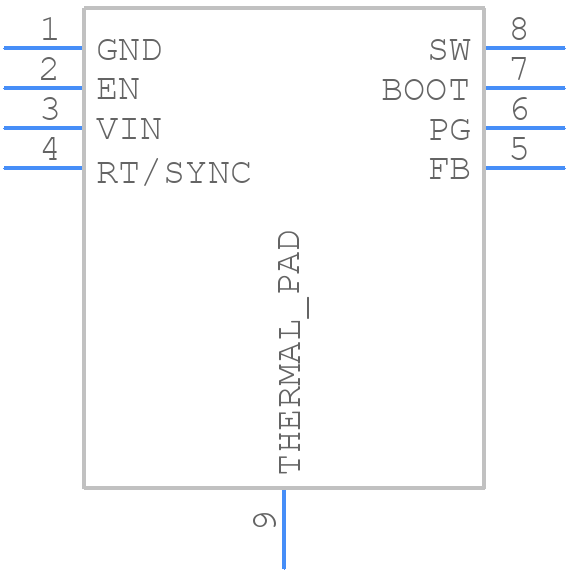

Use the download button to access the LMR38010FSQDDARQ1 schematic symbol, PCB footprint, and 3D model.
