LMR38015SDRRR - Texas Instruments

Description: Switching Voltage Regulators NIXON 80V WSON COMMERCIAL FERT

Download LMR38015SDRRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

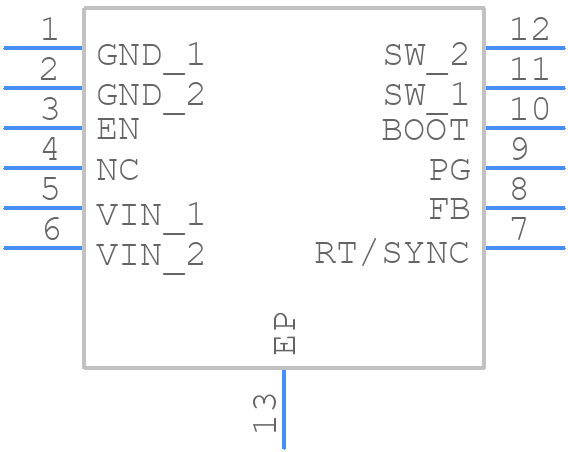

LMR38015SDRRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR38015SDRRR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRR0012G
click to zoom
3D Models
LMR38015SDRRR - Texas Instruments - 3D model - Small Outline No-lead - DRR0012G
click to zoom

LMR38015SDRRR Details

  • Manufacturer Part Number:

    LMR38015SDRRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PWM CONTROL TECHNIQUE ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    SILENT SWITCHER

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    4.2 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    75 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LMR38015SDRRR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LMR38015SDRRR is 26.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 25V for reliable operation.
  • To ensure stability of the LMR38015SDRRR output voltage, it's essential to use a suitable output capacitor with a minimum value of 10uF and an ESR (Equivalent Series Resistance) of less than 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR of less than 1 ohm.
  • The minimum input voltage required for the LMR38015SDRRR to operate is 6.5V. However, the output voltage regulation may not be within specifications if the input voltage is too close to the minimum limit.
  • The LMR38015SDRRR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • The power dissipation of the LMR38015SDRRR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The maximum power dissipation rating is 1.5W.
