Texas Instruments provides a recommended PCB layout for the LMR38015SQDRRRQ1 in the datasheet, but it's also recommended to follow general guidelines for thermal design, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
To ensure proper biasing, follow the recommended operating conditions in the datasheet, including the input voltage range, output voltage range, and output current. Additionally, ensure that the input and output capacitors are properly selected and placed close to the device.
The datasheet does not specify a maximum allowed ripple voltage, but as a general rule, it's recommended to keep the input ripple voltage below 10% of the nominal input voltage to ensure stable operation.
The LMR38015SQDRRRQ1 is rated for operation up to 125°C, but it's essential to consider the device's thermal derating, power dissipation, and cooling mechanisms when operating in high-temperature environments.
To troubleshoot issues, start by verifying the input voltage, output voltage, and output current are within the recommended operating conditions. Check the PCB layout for thermal issues, and ensure that the input and output capacitors are properly selected and placed. If issues persist, consult the datasheet's troubleshooting section or contact Texas Instruments support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR38015SQDRRRQ1 Overview

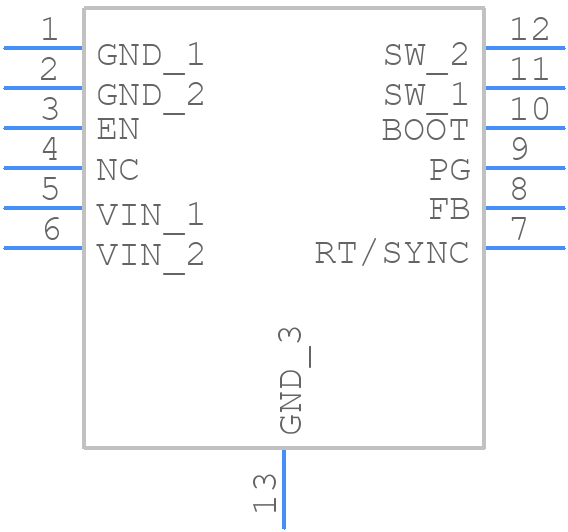

Use the download button to access the LMR38015SQDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR38,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
