Texas Instruments provides a recommended PCB layout for the LMR38020FSQDDARQ1 in the datasheet, but it's also recommended to follow general guidelines for thermal design, such as using a solid ground plane, minimizing thermal resistance, and using thermal vias to dissipate heat.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider derating the device's power dissipation. Additionally, Texas Instruments provides a thermal model for the LMR38020FSQDDARQ1 that can be used to simulate thermal performance.
Using a different input capacitor value than recommended may affect the device's stability, output voltage ripple, and transient response. It's essential to follow the recommended input capacitor value and type to ensure optimal performance and stability.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback network. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback network is properly connected and configured.
Texas Instruments provides a recommended procedure for soldering and rework in the datasheet, which includes using a soldering iron with a temperature of 260°C (500°F) or less, and avoiding excessive heat and mechanical stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR38020FSQDDARQ1 Overview

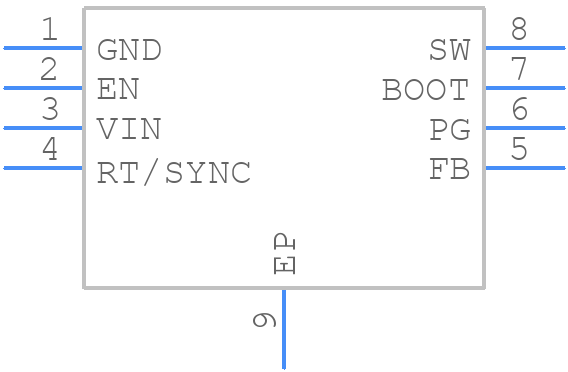

Use the download button to access the LMR38020FSQDDARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR38,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
