Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the specific requirements of your design, such as the output voltage, current, and frequency. Texas Instruments provides a list of recommended inductors in the datasheet, but you can also use online inductor selection tools or consult with a TI FAE for guidance.
The maximum ambient temperature for the LMR43610MB3RPER is 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
The LMR43610MB3RPER is an automotive-qualified device, but it's still important to review the device's qualification data and perform additional testing to ensure it meets the specific requirements of your application.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage errors, oscillations, and overheating. You can also consult with a TI FAE or use online resources such as the TI E2E forum for additional guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR43610MB3RPER Overview

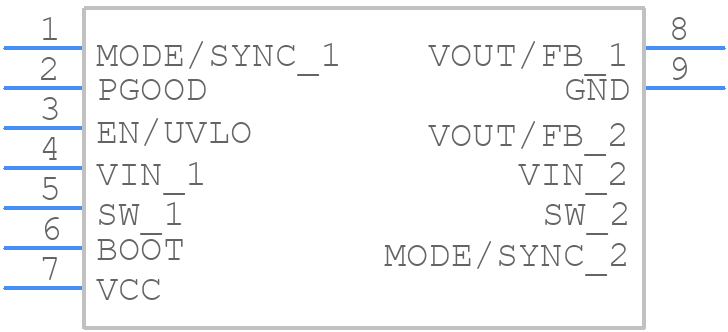

Use the download button to access the LMR43610MB3RPER schematic symbol, PCB footprint, and 3D model.
