Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the datasheet's guidelines for component selection, especially the output capacitor's ESR and capacitance. Additionally, make sure the input voltage is within the recommended range, and the output voltage is set correctly. You can also use TI's WEBENCH tool to simulate and optimize the design.
The maximum ambient temperature for the LMR43610R3RPER is 125°C, but it's recommended to derate the device's performance at higher temperatures. Consult the datasheet's thermal characteristics section for more information.
Yes, the LMR43610R3RPER is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and layout guidelines, and to consult with TI's application engineers for specific requirements and validation.
Start by checking the input voltage, output voltage, and current. Verify that the component values and layout match the datasheet's recommendations. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult TI's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR43610R3RPER Overview

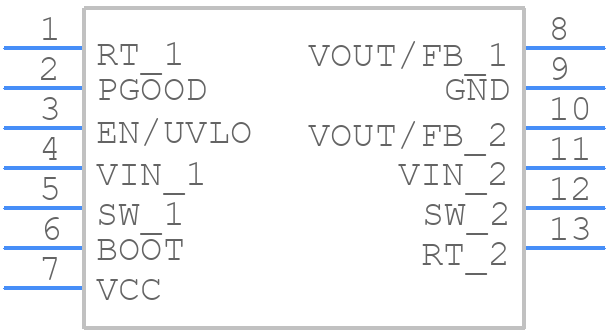

Use the download button to access the LMR43610R3RPER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR43,
or try a keyword search, such as Switching Regulator or Controllers
