Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
To ensure stability, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor in parallel with the output capacitor to improve transient response.
The maximum ambient temperature range for the LMR43610RS5QRPERQ1 is -40°C to 125°C, but it's essential to consider the junction temperature (TJ) which should not exceed 150°C. The device's thermal performance can be improved by using a heat sink or a thermally enhanced package.
Yes, the LMR43610RS5QRPERQ1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is also suitable for industrial and medical applications that require high reliability.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values against the datasheet recommendations. Use an oscilloscope to measure the output voltage ripple and transient response. If the issue persists, consider consulting the Texas Instruments support resources or seeking assistance from a qualified engineer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMR43610RS5QRPERQ1 Overview

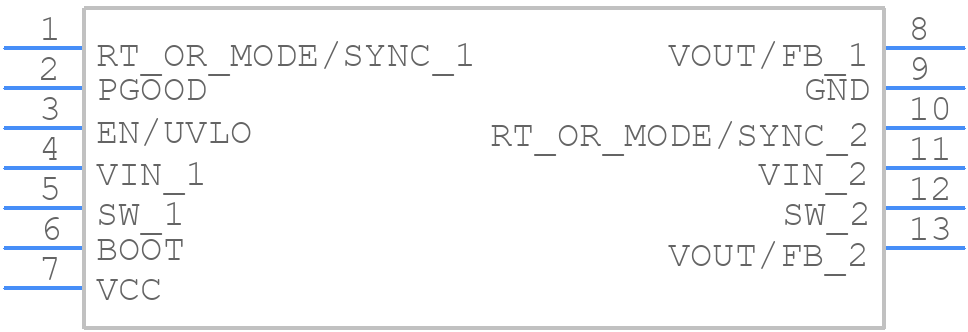

Use the download button to access the LMR43610RS5QRPERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMR43,
or try a keyword search, such as Switching Regulator or Controllers
