LMR43620MSC3RPERQ1 - Texas Instruments

Description: Texas Instruments 3-V to 36-V, 2-A, low-IQ synchronous buck regulator 9-VQFN-HR -40 to 150

Download LMR43620MSC3RPERQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

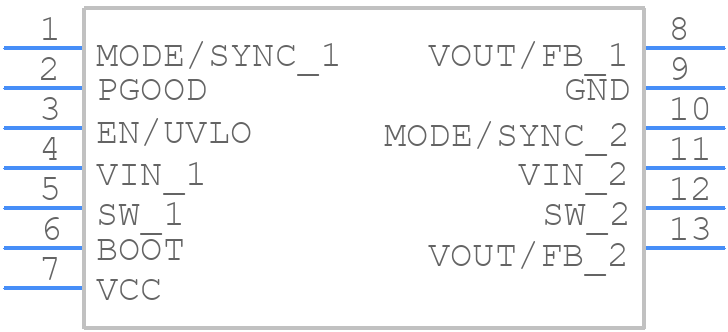

Symbol
LMR43620MSC3RPERQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR43620MSC3RPERQ1 - Texas Instruments PCB footprint - Other - Other - LMR43620MSC3RPERQ1-5
click to zoom
3D Models
LMR43620MSC3RPERQ1 - Texas Instruments - 3D model - Other - LMR43620MSC3RPERQ1-5
click to zoom

LMR43620MSC3RPERQ1 Details

  • Manufacturer Part Number:

    LMR43620MSC3RPERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-10-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PWM/PFM

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    13.5 V

  • JESD-30 Code:

    S-PQCC-N9

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    34.2 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC9,.08SQ(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LMR43620MSC3RPERQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR output capacitor, and add a 10nF-100nF ceramic capacitor in parallel with the output capacitor. Additionally, ensure that the input capacitor is placed close to the VIN pin.
  • Although the datasheet specifies a maximum input voltage of 42V, it's recommended to limit the input voltage to 36V to ensure reliable operation and prevent damage to the device.
  • Choose an output capacitor with a low ESR (Equivalent Series Resistance) and a capacitance value between 10uF to 47uF. A ceramic or polymer capacitor with an X5R or X7R dielectric is recommended for optimal performance.
  • The LMR43620 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked and follow the recommended PCB layout for optimal thermal performance.
