LMR43620RS3QRPERQ1 - Texas Instruments

Description: Switching Voltage Regulators Automotive 3-V to 36-V, 2-A, low-IQ synchronous buck regulator

Download LMR43620RS3QRPERQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

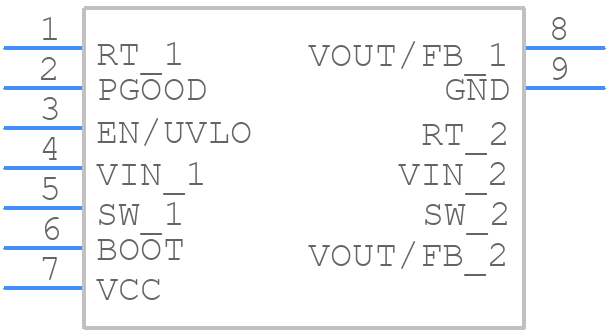

Symbol
LMR43620RS3QRPERQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMR43620RS3QRPERQ1 - Texas Instruments PCB footprint - Other - Other - RPE0009A_2022
click to zoom
3D Models
LMR43620RS3QRPERQ1 - Texas Instruments - 3D model - Other - RPE0009A_2022
click to zoom

LMR43620RS3QRPERQ1 Details

  • Manufacturer Part Number:

    LMR43620RS3QRPERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    13.5 V

  • JESD-30 Code:

    S-PQCC-N9

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    32 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC9,.08SQ(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LMR43620RS3QRPERQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
  • To ensure the LMR43620RS3QRPERQ1 operates within its thermal limits, calculate the junction temperature (TJ) using the formula provided in the datasheet, and ensure it does not exceed the maximum rated TJ of 150°C. Also, consider using a thermal pad or heat sink to improve heat dissipation.
  • The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The value should be at least 10uF, but a larger value may be required depending on the input voltage and output current requirements.
  • The output voltage of the LMR43620RS3QRPERQ1 can be adjusted by using a resistive divider network between the output and the FB pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The maximum output current capability of the LMR43620RS3QRPERQ1 is 2A, but this may be limited by the thermal performance of the device and the PCB layout. It's recommended to derate the output current based on the ambient temperature and the device's thermal performance.
