Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the output is properly terminated and that the input is properly biased. Additionally, it's recommended to simulate the design using SPICE models and to test the prototype thoroughly.
The maximum power dissipation of the LMV112SDX/NOPB is dependent on the operating conditions, such as the supply voltage, output current, and ambient temperature. The power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Pd is the power dissipation, Vcc is the supply voltage, Icc is the supply current, Vout is the output voltage, and Iout is the output current.
The output capacitor value and type depend on the specific application requirements, such as the output voltage, output current, and ripple rejection. A general rule of thumb is to use a capacitor with a value between 10uF to 100uF, and a type that is suitable for high-frequency applications, such as a ceramic or film capacitor.
The recommended input voltage range for the LMV112SDX/NOPB is 2.7V to 5.5V, and the recommended output voltage range is 1.2V to 5.5V. However, the device can operate with input voltages as low as 2.2V and output voltages as low as 1.0V, but with reduced performance and accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMV112SDX/NOPB Overview

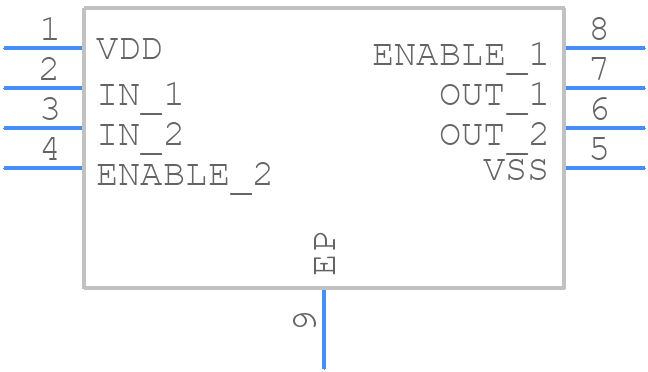

Use the download button to access the LMV112SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV11,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
