- Stock & Prices $ Price & Stock for LMV221SDX/NOPB
- Part Number LMV221SDX/NOPB
- Manufacturer Texas Instruments
- Pin Count 7
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - LMV221SDX/NOPB**
- Released Date Sep 24, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMV221SDX/NOPB Details
-
Manufacturer Part Number:
LMV221SDX/NOPB
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SON
-
Pin Count:
6
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
LMV221SDX/NOPB Frequently Asked Questions (FAQs)
-
The maximum power dissipation of the LMV221SDX/NOPB is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
Yes, the LMV221SDX/NOPB is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the maximum junction temperature (TJ) should not exceed 150°C.
-
To ensure stability, it's essential to follow proper PCB layout practices, use a low-ESR capacitor for decoupling, and consider adding a compensation capacitor (e.g., 10nF to 100nF) in parallel with the feedback resistor.
-
To minimize noise and ensure optimal performance, keep the input and output traces short and separate, use a ground plane, and avoid running sensitive traces near the op-amp's power pins.
-
While the LMV221SDX/NOPB can be used as a comparator, it's not the most suitable choice due to its relatively slow slew rate (0.5V/μs) and limited bandwidth (2.5MHz). A dedicated comparator IC would be a better option.
Trust Checks
Community Provided
System Verified
Community Approved
LMV221SDX/NOPB Overview

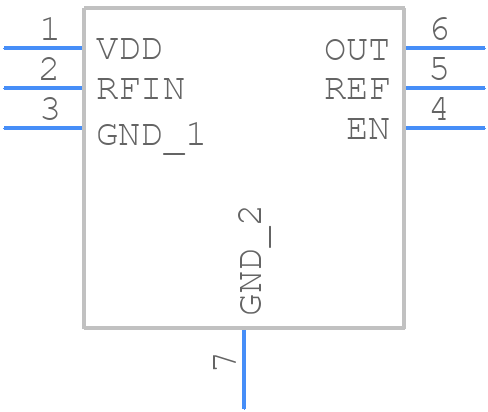

Use the download button to access the LMV221SDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV22,
or try a keyword search, such as Other Signal Circuits
