LMV225SD/NOPB - Texas Instruments

Description: Texas Instruments LMV225SD/NOPB, RF Amplifier RF Power Detector 2 GHz, 6-Pin WSON

Download LMV225SD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

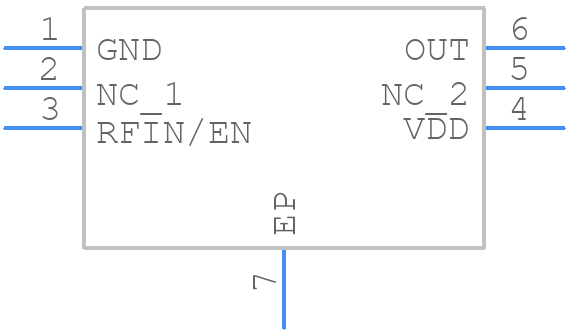

LMV225SD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMV225SD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGF0006A-
click to zoom
3D Models
LMV225SD/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGF0006A-
click to zoom

LMV225SD/NOPB Details

  • Manufacturer Part Number:

    LMV225SD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.2 mm

LMV225SD/NOPB Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LMV225SD/NOPB is 2.7V to 5.5V.
  • To ensure stability, it is recommended to use a minimum gain of 5, and to avoid capacitive loads. Additionally, a 10nF to 100nF capacitor can be added between the output and the inverting input to improve stability.
  • The maximum power dissipation for the LMV225SD/NOPB is 670mW. It is recommended to ensure that the device does not exceed this power rating to prevent overheating and damage.
  • The LMV225SD/NOPB is rated for operation up to 125°C. However, it is recommended to derate the power dissipation at higher temperatures to prevent overheating and ensure reliable operation.
  • To minimize noise and interference, it is recommended to keep the input and output traces separate, use a ground plane, and keep the power supply traces away from the signal traces. Additionally, decoupling capacitors can be added to the power supply pins to reduce noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMV225SD/NOPB Overview

Use the download button to access the LMV225SD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV22, or try a keyword search, such as RF/Microwave Detectors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
