LMV228SD/NOPB - Texas Instruments

Description: RF Power Detector for CDMA and WCDMA in micro SMD

Download LMV228SD/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

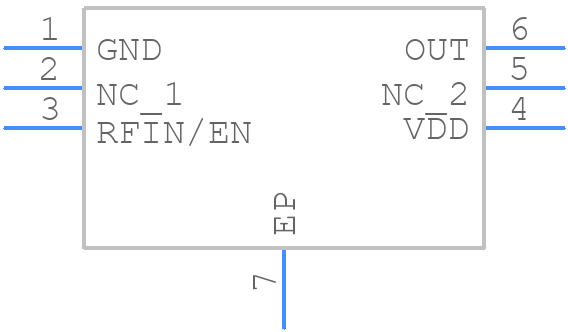

LMV228SD/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMV228SD/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGF0006A
click to zoom
3D Models
LMV228SD/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGF0006A
click to zoom

LMV228SD/NOPB Details

  • Manufacturer Part Number:

    LMV228SD/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

LMV228SD/NOPB Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LMV228SD/NOPB is 2.7V to 5.5V, although it can operate down to 2.2V with reduced performance.
  • To ensure stability, use a compensation capacitor (typically 10-22pF) between the output and the inverting input, and consider adding a series resistor (typically 10-100Ω) between the output and the load.
  • The LMV228SD/NOPB can drive up to 100pF of capacitive load, but it's recommended to limit the load to 50pF or less to ensure stability and prevent oscillations.
  • Yes, the LMV228SD/NOPB can be used in a single-supply configuration, but the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. Additionally, the output voltage swing will be reduced.
  • To reduce noise and EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using a solid ground plane, and adding bypass capacitors (typically 0.1μF to 1μF) between the power supply pins and ground.
