LMV324DTBR2G - onsemi

Description: Operation from 2.7 V to 5.0 V Single-Sided Power Supply; No Output Crossover Distortion; Industrial temperature Range: -40C to +85C; Rail-to-Rail Output; Low Quiescent Current; No Output Phase-Reversal from Overdriven Input

Download LMV324DTBR2G Model

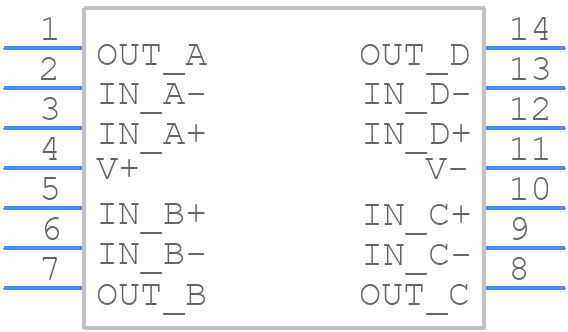

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LMV324DTBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 CASE 948G
click to zoom
3D Models
LMV324DTBR2G - onsemi  - 3D model - Small Outline Packages - TSSOP−14 CASE 948G
click to zoom

LMV324DTBR2G Details

  • Manufacturer Part Number:

    LMV324DTBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.17

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    65 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    0.68 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    4.4 mm

LMV324DTBR2G Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LMV324DTBR2G is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
  • To ensure stability, make sure to decouple the power supply pins (VCC and GND) with a 0.1uF capacitor, and use a minimum of 1kΩ resistors in the feedback loop. Additionally, avoid using long wires or traces that can introduce parasitic inductance.
  • The recommended operating voltage range for the LMV324DTBR2G is 2.7V to 5.5V. Operating outside of this range may affect the op-amp's performance and reliability.
  • While the LMV324DTBR2G can be used as a comparator, it's not the most suitable op-amp for this application. The LMV324DTBR2G is designed for general-purpose amplification, and its output stage is not optimized for high-speed switching. For comparator applications, consider using a dedicated comparator IC like the LMV761 or LM2901.
  • To reduce noise and EMI, use a ground plane, keep signal traces short and away from noise sources, and use shielding or twisted pairs for sensitive signals. Additionally, consider adding a 10nF capacitor in parallel with a 1kΩ resistor between the output and ground to filter out high-frequency noise.
