The maximum power dissipation of the LMV324MT is dependent on the package and ambient temperature. For the VSSOP-14 package, the maximum power dissipation is 670mW at 25°C. However, this value can be derated based on the ambient temperature. Refer to the thermal characteristics section of the datasheet for more information.
While the LMV324MT is an op-amp, it can be used as a comparator in certain applications. However, it's essential to note that the LMV324MT is not designed specifically as a comparator and may not have the same performance characteristics as a dedicated comparator. Additionally, the output stage of the LMV324MT is designed for linear operation, so it may not be suitable for high-speed switching applications.
The input impedance of the LMV324MT is typically around 10^12 ohms in parallel with 10pF. This is due to the high input impedance of the op-amp's input stage, which is designed to minimize input bias current and maximize input impedance.
Yes, the LMV324MT can be used in a single-supply configuration. The device can operate from a single supply voltage as low as 2.7V, making it suitable for battery-powered applications. However, the input common-mode range and output voltage swing may be limited in single-supply operation, so it's essential to consult the datasheet for specific details.
The LMV324MT has an ESD rating of 2kV for human-body model (HBM) and 200V for charged-device model (CDM). This means that the device can withstand electrostatic discharges up to 2kV without damage, making it suitable for use in applications where ESD protection is essential.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMV324MT Overview

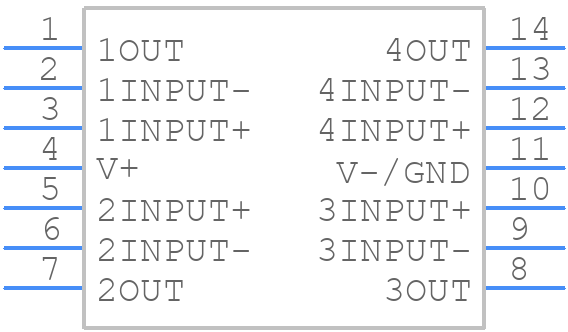

Use the download button to access the LMV324MT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV32,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
