LMV331TP-TR - 3Peak Incorporated

Description: General Purpose Comparator, Open-Drain, 2 Circuit, SOT23-5

Download LMV331TP-TR Model

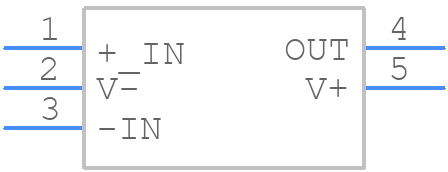

Schematic
