LMV358MUTAG - onsemi

Description: Operation from 2.7 V to 5.0 V Single-Sided Power Supply; No Output Crossover Distortion; Industrial temperature Range: -40C to +85C; Rail-to-Rail Output; Low Quiescent Current; No Output Phase-Reversal from Overdriven Input

Download LMV358MUTAG Model

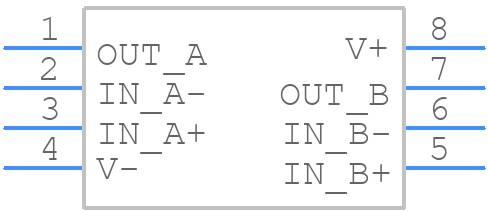

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LMV358MUTAG - onsemi PCB footprint - Other - Other - LMV358MUTAG-1
click to zoom
3D Models
LMV358MUTAG - onsemi  - 3D model - Other - LMV358MUTAG-1
click to zoom

LMV358MUTAG Details

  • Manufacturer Part Number:

    LMV358MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN8 1.8x1.2, 0.4P

  • Pin Count:

    8

  • Manufacturer Package Code:

    517AJ

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.13

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    65 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.05,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    0.34 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    1.2 mm

LMV358MUTAG Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LMV358MUTAG is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance (125°C/W) of the package.
  • To ensure stability, it's recommended to use a gain resistor (Rg) between the output and the inverting input, and a capacitor (Cc) in parallel with Rg to compensate for the op-amp's internal capacitance. The values of Rg and Cc depend on the specific application and gain configuration.
  • To minimize noise and EMI, it's recommended to keep the input and output traces short and away from noise sources, use a ground plane, and decouple the power supply with capacitors. Additionally, it's recommended to use a star-ground configuration and avoid routing signals near the op-amp's inputs.
  • While the LMV358MUTAG can be used as a comparator, it's not the most suitable op-amp for this application due to its relatively slow slew rate (0.5V/μs) and limited bandwidth (3MHz). A dedicated comparator like the LMV761 or LMV762 would be a better choice for most applications.
  • The LMV358MUTAG has internal ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, anti-static bags, and mats, and minimizing the risk of static discharge during assembly and testing.
