Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to consider the gain and phase margin of the amplifier. Additionally, the datasheet provides a stability analysis tool to help designers evaluate the stability of their specific application.
The maximum power dissipation of the LMV604MAX is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation, and designers should ensure that the device operates within the recommended power dissipation limits to avoid overheating and potential damage.
Yes, the LMV604MAX can be used as a single-ended amplifier by tying the negative input to ground and using the positive input as the signal input. However, this configuration may affect the noise performance and common-mode rejection ratio (CMRR) of the amplifier, and designers should carefully evaluate the trade-offs before implementing this configuration.
The LMV604MAX is a sensitive device and requires proper ESD protection during handling and assembly. Designers should follow standard ESD protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials, and ensuring that the device is properly grounded during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMV604MAX/NOPB Overview

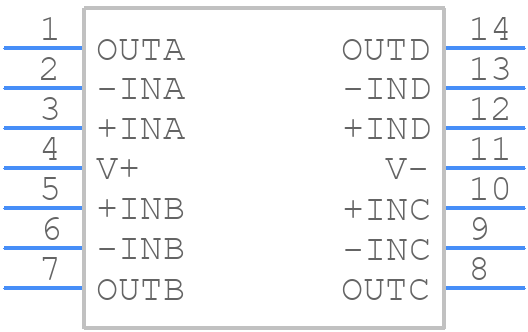

Use the download button to access the LMV604MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV60,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
