LMV7235M7/NOPB - Texas Instruments

Description: 75 nsec, Ultra Low Pwr, Low Voltage, Rail-toRail Input Comparator w/ Open-Drain/Push-Pull Output

Download LMV7235M7/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

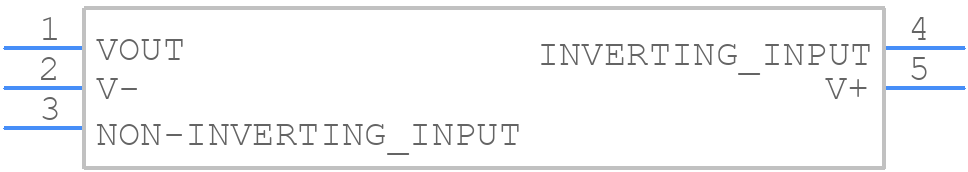

LMV7235M7/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMV7235M7/NOPB - Texas Instruments PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - DCK (R-PDSO-G5)
click to zoom
3D Models
LMV7235M7/NOPB - Texas Instruments - 3D model - SOT23 (5-Pin) - DCK (R-PDSO-G5)
click to zoom

LMV7235M7/NOPB Details

  • Manufacturer Part Number:

    LMV7235M7/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.6 µA

  • Bias Current-Max (IIB) @25C:

    0.4 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP5/6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    68 ns

  • Seated Height-Max:

    1.1 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    0.095 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

LMV7235M7/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI (SLUAAC4) provides additional guidance.
  • To ensure stability, follow the recommended capacitor values and types in the datasheet, and ensure that the output capacitor has a low ESR (Equivalent Series Resistance). Additionally, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • While the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and minimize the risk of damage to the device.
  • The device is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure that the device is properly heat-sinked and that the thermal design is adequate for the specific application.
  • Power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT, where VIN is the input voltage, VOUT is the output voltage, and IOUT is the output current. Ensure that the calculated PD is within the device's specified power dissipation rating.
