- Part Number LMV7235M7
- Manufacturer Texas Instruments
- Pin Count 5
- Part Category Integrated Circuit
- Package Category SOT23 (5-Pin)
- Footprint Name SOT23 (5-Pin) - DCK (R-PDSO-G5)
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMV7235M7 Details
-
Manufacturer Part Number:
LMV7235M7
-
Brand Name:
Texas Instruments
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Pin Count:
5
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Amplifier Type:
COMPARATOR
-
Average Bias Current-Max (IIB):
0.6 µA
LMV7235M7 Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply pins with capacitors.
-
To ensure stability, it's recommended to follow the datasheet's guidelines for compensation capacitor selection, and to use a minimum of 10uF ceramic capacitor at the output. Additionally, the input and output impedance should be matched, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
-
The maximum power dissipation of the LMV7235M7 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature, but this can be derated to 0.7W at 85°C ambient temperature.
-
Yes, the LMV7235M7 is rated for operation up to 125°C junction temperature, but the maximum power dissipation should be derated accordingly. Additionally, the device's performance may degrade at high temperatures, and the user should consult the datasheet for more information on temperature-related specifications.
-
The LMV7235M7 has built-in overvoltage protection, but it's still recommended to add external protection circuitry, such as a voltage clamp or a current limiter, to prevent damage from excessive voltage or current. Additionally, the user should ensure that the input and output capacitors are rated for the maximum voltage and current expected in the application.
Trust Checks
System Verified
LMV7235M7 Overview

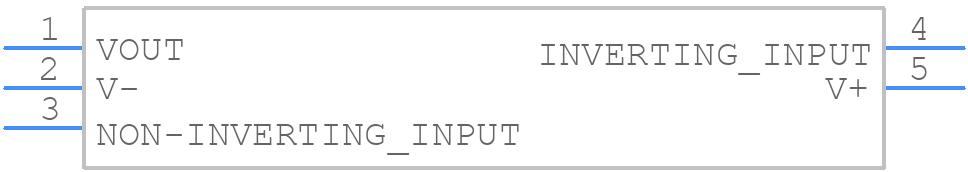

Use the download button to access the LMV7235M7 schematic symbol, PCB footprint, and 3D model.
