LMV7239M5X/NOPB - Texas Instruments

Description: 75 nsec, Ultra Low Pwr, Low Voltage, Rail-to-Rail Input Comparator w/ Open-Drain/Push-Pull Output

Download LMV7239M5X/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

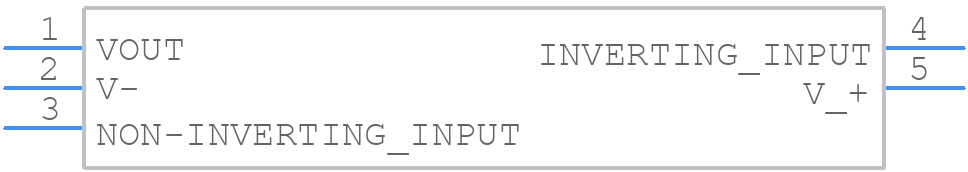

LMV7239M5X/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMV7239M5X/NOPB - Texas Instruments PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - DBV0005A
click to zoom
3D Models
LMV7239M5X/NOPB - Texas Instruments - 3D model - SOT23 (5-Pin) - DBV0005A
click to zoom

LMV7239M5X/NOPB Details

  • Manufacturer Part Number:

    LMV7239M5X/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.6 µA

  • Bias Current-Max (IIB) @25C:

    0.4 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.92 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    68 ns

  • Seated Height-Max:

    1.22 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    0.095 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.953 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

LMV7239M5X/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMV7239M5X/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the output capacitor is sufficient to maintain stability. Additionally, the input and output impedance should be matched to prevent oscillations.
  • The maximum power dissipation of the LMV7239M5X/NOPB is dependent on the ambient temperature and the thermal resistance of the package. The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. It's essential to ensure that the device does not exceed the maximum power dissipation to prevent overheating.
  • The LMV7239M5X/NOPB is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to derate the device's power dissipation and ensure proper thermal management to prevent overheating.
  • To protect the LMV7239M5X/NOPB from input voltage transients and surges, it's recommended to use a TVS diode or a transient voltage suppressor at the input. Additionally, a fuse or a current limiter can be used to prevent overcurrent conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMV7239M5X/NOPB Overview

Use the download button to access the LMV7239M5X/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMV72, or try a keyword search, such as Comparators
