The maximum power dissipation of the LMV794MAX/NOPB is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
Yes, the LMV794MAX/NOPB is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not be exceeded.
To minimize noise and ensure optimal performance, follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and keeping signal traces short and away from noise sources. Additionally, place decoupling capacitors close to the device's power pins and use a low-ESR capacitor for the bypass capacitor.
While the LMV794MAX/NOPB is an op-amp, it can be used as a comparator in certain applications. However, it's essential to note that the device's output stage is not optimized for comparator operation, and the output voltage swing may not be rail-to-rail. Additionally, the device's input common-mode range and input offset voltage may not be suitable for all comparator applications.
The recommended capacitor value for the bypass capacitor (CBYP) is 10nF to 100nF, with a low-ESR ceramic capacitor being a good choice. The exact value depends on the specific application and the desired level of noise filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMV794MAX/NOPB Overview

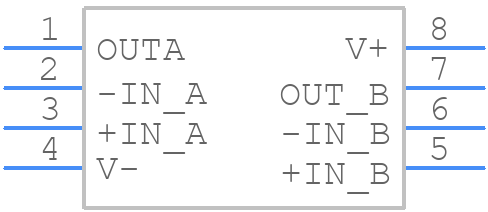

Use the download button to access the LMV794MAX/NOPB schematic symbol, PCB footprint, and 3D model.
