LMV844MT - Texas Instruments

Description: Unless Otherwise Noted, Typical Values at TA = 25 °C, V + = 5 V. • Small 5-Pin SC70 Package (2.00 mm × 1.25 mm × 0.95 mm) • Wide Supply Voltage Range: 2.7 V to 12 V • Specified Performance at 3.3 V, 5 V and ±5 V • Low Supply Current: 1 mA Per Channel • Unity Gain Bandwidth: 4.5 MHz • Open-Loop Gain: 133 dB • Input Offset Voltage: 500 µV Maximum • Input Bias Current: 0.3 pA • CMRR at 112 dB and PSSR at 108 dB • Input Voltage Noise: 20 nV/√Hz • Temperature Range: −40°C to 125°C • Rail-to-Rail I

Download LMV844MT Model

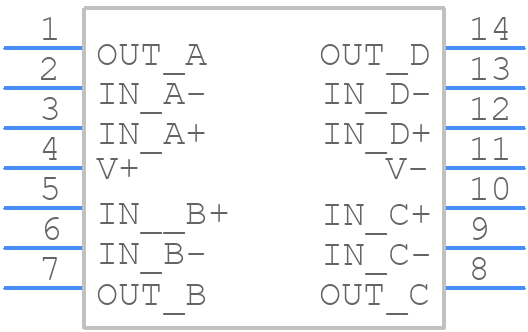

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LMV844MT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP...
click to zoom
3D Models
LMV844MT - Texas Instruments  - 3D model - Small Outline Packages - TSSOP...
click to zoom

LMV844MT Details

  • Manufacturer Part Number:

    LMV844MT

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0003 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    106 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    800 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -6.6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    2.5 V/us

  • Supply Current-Max:

    8 mA

  • Supply Voltage Limit-Max:

    6.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    4.4 mm

LMV844MT Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LMV844MT is dependent on the ambient temperature and the package thermal resistance. According to the datasheet, the maximum power dissipation is 670mW at 25°C ambient temperature, but this can be derated to 500mW at 50°C and 330mW at 85°C.
  • While the LMV844MT is an op-amp, it can be used as a comparator in certain applications. However, it's not recommended for high-speed or high-frequency comparator applications due to its limited slew rate and bandwidth. Additionally, the output stage is not designed for high-current drive, so it may not be suitable for driving heavy loads.
  • The input impedance of the LMV844MT is not explicitly stated in the datasheet, but it can be estimated based on the input bias current and input voltage range. Typically, the input impedance of an op-amp is very high, on the order of tens of MΩ or higher.
  • Yes, the LMV844MT can be used in a single-supply configuration, but the input common-mode voltage range is limited to within 1.5V of the positive supply rail. This means that the input signal should be biased to be within this range to ensure proper operation.
  • The LMV844MT has built-in ESD protection on the input pins, which can withstand up to 2kV of electrostatic discharge according to the Human Body Model (HBM) and 200V according to the Machine Model (MM). However, it's still recommended to follow proper ESD handling procedures when handling the device.
