A good PCB layout for the LMX1204RHAT involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The LMX1204RHAT requires a 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to power the device. The power sequencing requirement is to power up the 3.3V supply before the 1.8V supply, and to power down the 1.8V supply before the 3.3V supply.
The recommended clocking scheme for the LMX1204RHAT is to use a single-ended clock input, and to use a clock source with low jitter. To minimize clock jitter, it's recommended to use a clock source with a jitter of less than 100 ps, and to use a clock distribution network with minimal skew and jitter.
The LMX1204RHAT has several configuration options that can be optimized for specific applications. It's recommended to consult the datasheet and application notes for guidance on configuring the device for optimal performance in your specific application.
The LMX1204RHAT has a maximum junction temperature of 150°C, and it's recommended to ensure the device operates within a temperature range of -40°C to 85°C. Thermal considerations include providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX1204RHAT Overview

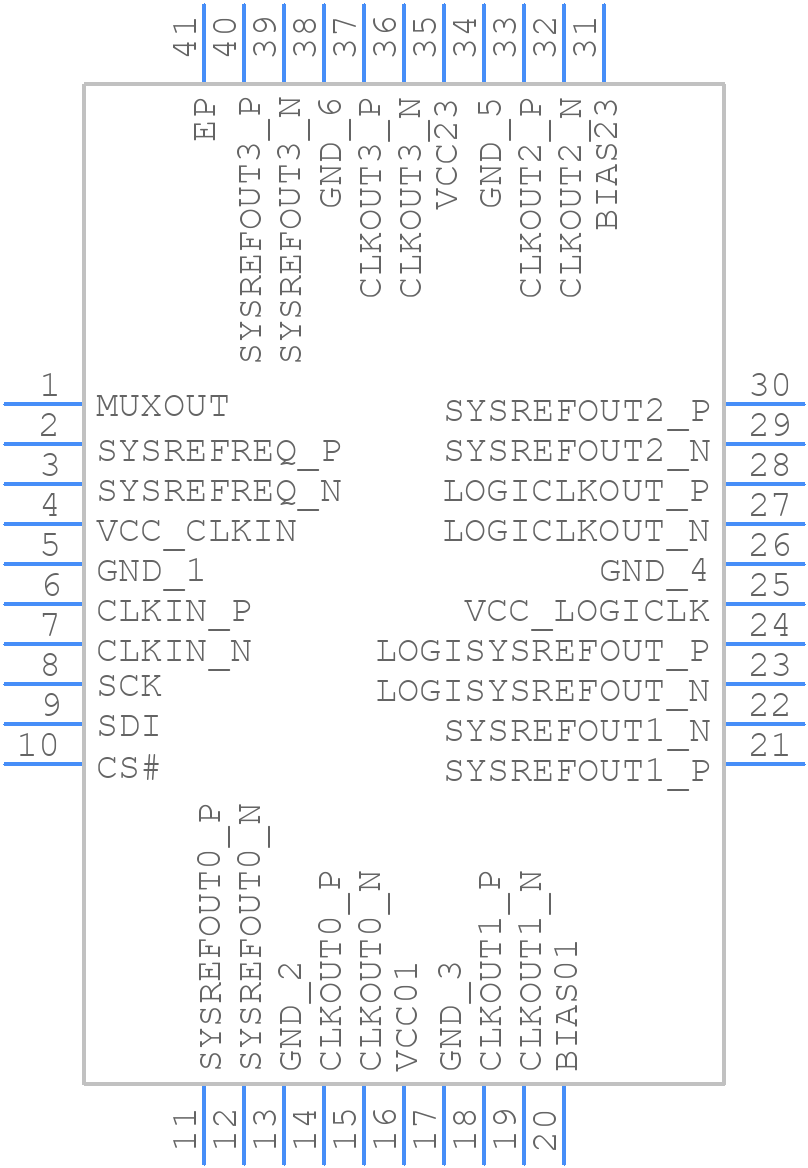

Use the download button to access the LMX1204RHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX12,
or try a keyword search, such as Clock Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
