LMX1214RHAT - Texas Instruments

Description: RF IC Oscillator Buffer Radar 300MHz ~ 18GHz 2.4V ~ 2.6V Supply 40-VQFN (6x6) , -40C ~ +85C

Download LMX1214RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

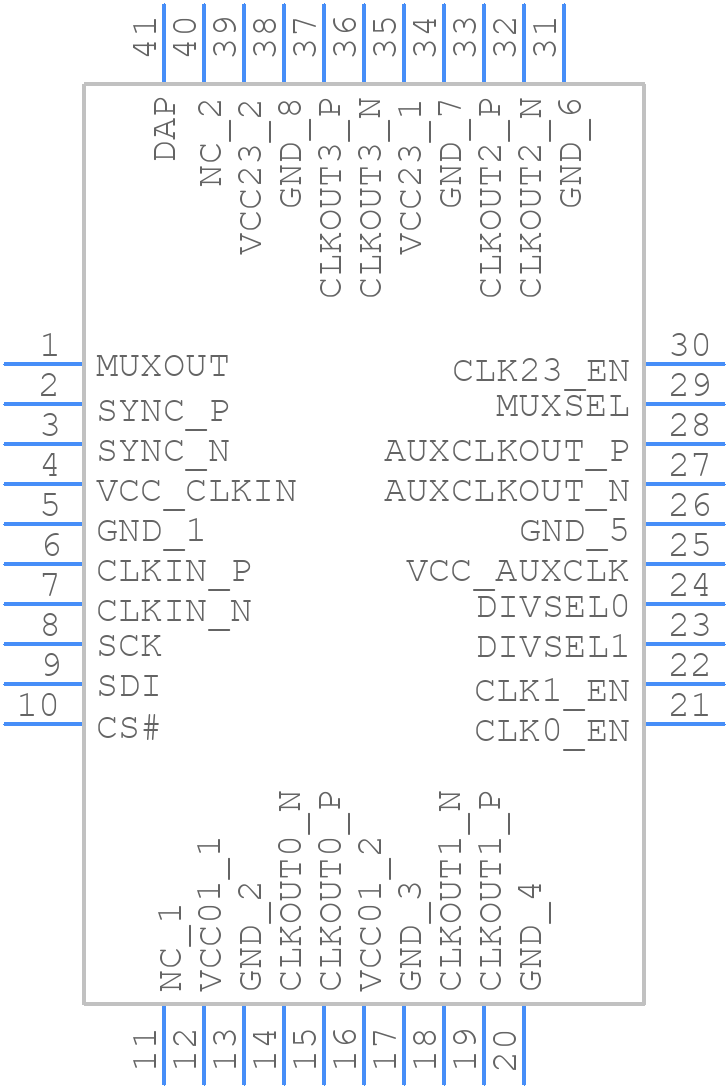

LMX1214RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX1214RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040C
click to zoom
3D Models
LMX1214RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040C
click to zoom

LMX1214RHAT Details

  • Manufacturer Part Number:

    LMX1214RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    LMX

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.005 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    530 mA

  • Propagation Delay (tpd):

    0.125 ns

  • Same Edge Skew-Max (tskwd):

    0.01 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • fmax-Min:

    300 MHz

LMX1214RHAT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for RF signals.
  • To minimize power consumption, ensure that the device is operated in the correct mode (e.g., shutdown or low-power mode) when not in use. Additionally, adjust the voltage regulator output to the minimum required voltage, and use the power-down feature for the PLL and VCO when not needed.
  • The LMX1214RHAT has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink if the device will be operating in a high-temperature environment.
  • Use a spectrum analyzer to verify the output frequency and spectral purity. Check the PLL/VCO control voltage and current, and ensure that the loop filter components are correctly valued and placed. Consult the datasheet and application notes for troubleshooting guides and tips.
  • Yes, but impedance matching may be required to ensure optimal performance. Consult the datasheet and application notes for guidance on impedance matching and consider using an external matching network if necessary.
