The recommended PCB layout for the LMX2330ATM involves placing the device near the antenna, using a solid ground plane, and keeping the RF traces as short as possible. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the RF signal to minimize noise and interference.
To optimize the performance of the LMX2330ATM, ensure that the device is properly matched to the antenna, use a high-quality antenna with a good return loss, and minimize the distance between the device and the antenna. Additionally, optimize the PCB layout, use a good quality crystal oscillator, and ensure that the power supply is clean and stable.
The maximum operating temperature range for the LMX2330ATM is -40°C to +85°C. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
To troubleshoot issues with the LMX2330ATM, start by checking the power supply voltage, crystal oscillator frequency, and antenna connection. Use a spectrum analyzer to check the RF signal quality and ensure that the device is properly configured. Also, check the PCB layout and ensure that it meets the recommended layout guidelines.
Yes, the LMX2330ATM is designed to meet the requirements of the Federal Communications Commission (FCC) for wireless devices. However, it's the responsibility of the designer to ensure that the final product meets all the necessary FCC requirements and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMX2330ATM Overview

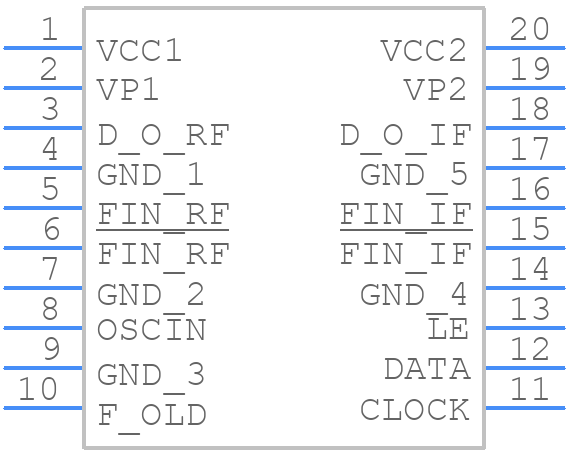

Use the download button to access the LMX2330ATM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX23,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
