Texas Instruments provides a recommended PCB layout in the application note SLAA384, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The LMX2430 is a highly configurable device, and the frequency band can be set using the SPI interface. The device has several registers that control the frequency synthesizer, and the specific configuration will depend on the desired frequency band. Refer to the datasheet and the application note SLAA385 for more information.
The maximum power consumption of the LMX2430 depends on the operating frequency, voltage supply, and other factors. According to the datasheet, the typical power consumption is around 350mA at 3.3V supply voltage, but it can be as high as 500mA in certain configurations. It's recommended to consult the datasheet and perform power consumption calculations based on the specific application requirements.
Yes, the LMX2430 can be used with an external VCO (Voltage-Controlled Oscillator). The device has a VCO input pin that allows an external VCO to be connected. This can be useful in applications where a specific VCO is required or where the internal VCO does not meet the frequency or phase noise requirements.
Troubleshooting issues with the LMX2430 can be challenging, but Texas Instruments provides several resources to help. The datasheet and application notes provide guidance on common issues and troubleshooting techniques. Additionally, the TI E2E forum is a valuable resource where engineers can ask questions and get answers from TI experts and other users.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LMX2430TM/NOPB Overview

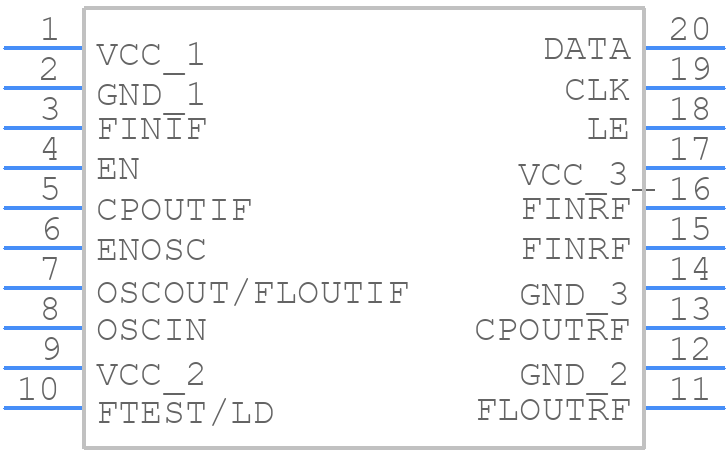

Use the download button to access the LMX2430TM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
