LMX2433SLEX/NOPB - Texas Instruments

Description: Phase Locked Loops - PLL 3.6-GHz/1.7-GHz PLLatinum dual high frequency synthesizer for RF personal communications 20-ULGA -40 to 85

Download LMX2433SLEX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

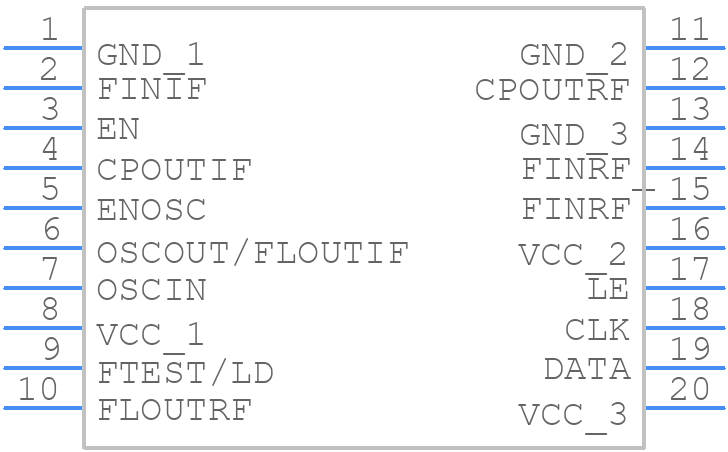

LMX2433SLEX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMX2433SLEX/NOPB - Texas Instruments PCB footprint - Other - Other - LMX2433SLEX/NOPB-5
click to zoom
3D Models
LMX2433SLEX/NOPB - Texas Instruments - 3D model - Other - LMX2433SLEX/NOPB-5
click to zoom

LMX2433SLEX/NOPB Details

  • Manufacturer Part Number:

    LMX2433SLEX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    3600 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC20,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    4.4 mA

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

LMX2433SLEX/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for the VCC pin and a 10uF capacitor for the AVCC pin.
  • Ensure the power-up sequence is VCC, then AVCC, then digital inputs. The device is fully operational after a 10ms power-up time. Initialize the device by writing to the control registers in the correct sequence, as specified in the datasheet.
  • A high-quality, low-jitter clock source is recommended, such as a crystal oscillator or a high-frequency clock generator. The clock source should be connected to the XTAL1 pin, and the XTAL2 pin should be left unconnected.
  • Use a shielded enclosure, keep analog and digital signals separate, and use a ground plane to reduce noise. Avoid running digital signals near analog signals, and use a common-mode filter or a ferrite bead to reduce EMI.
  • The maximum operating temperature range for the LMX2433SLEX/NOPB is -40°C to 85°C. However, the device may not meet all specifications at the extreme temperatures, so ensure to check the datasheet for specific temperature-related limitations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMX2433SLEX/NOPB Overview

Use the download button to access the LMX2433SLEX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMX24, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
